AD5422BREZ
We Just offer NEW & ORIGINAL items , should any of these items be
of interest to you, please let us know. we are pleased to quote you
our best price . Thank you !
Product Features:
12-/16-bit resolution and monotonicity
Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24
mA
±0.01% FSR typical total unadjusted error (TUE)
±3 ppm FSR/°C output drift
Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V
10% overrange
±0.01% FSR typical TUE
±2 ppm FSR/°C output drift
Flexible serial digital interface
On-chip output fault detection
On-chip reference: 10 ppm/°C maximum
Optional regulated DVCC output
Asynchronous clear function
Power supply range
AVDD: 10.8 V to 40 V
AVSS: −26.4 V to −3 V/0 V
Current loop compliance voltage: AVDD – 2.5 V
Temperature range: −40°C to +105°C
TSSOP and LFCSP packages
APPLICATIONS
Process controls
Actuator controls
PLC
HART network connectivity (LFCSP package only)
Product parameters:
| manufacturer | Analog Devices Inc. |
| package | pipe fitting |
| Product status | For Sale |
| digit | 16 |
| Number of digital to analog converters | 1 |
| Establishment time | 25 µ s (V), 40 µ s (A) (standard) |
| type of output | Voltage or Current - Buffered |
| data interface | SPI,DSP |
| Reference Type | External, Internal |
| Voltage supply, analog | 10.8V ~ 40V,-3V ~ 26.4V |
| Voltage supply, digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -± 1.3 (maximum) |
| architecture | R-2R |
| operation temperature | -40°C ~ 105°C |
| package | 24-TSSOP |
| Supplier Device Packaging | 24-TSSOP-EP |
| Installation type | Surface mount type |

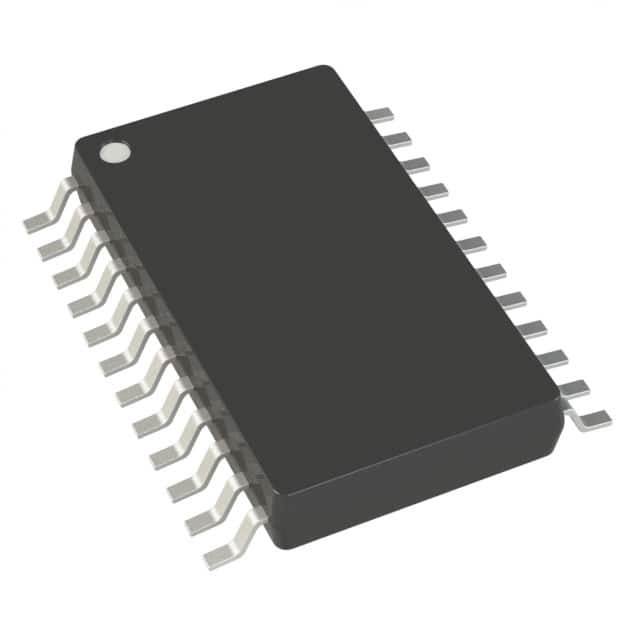

Product image:
FAQ
Q1: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your
specific order!
Q2: How about your delivery time?
A:Generally, goods would be shipped in 3-5 work days after payment
received, finally depends on order quantities.
Q3: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange
samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.
Q4):What is your products quality?Do you test all your goods before
delivery?
A:Yes,We have 100% test before delivery,We can make sure all the
items from our company is 100% new & original .
Q5:Can l get a discount if l make a larger order?
A:Yes, the more pieces you purchase, the higher the discount. If
your purchasing order amount reaches or exceeds $1,000, we would be
happy to provide you with a big order quoted price.
Any other more questions, please feel free to contact us. We are
always at your service !
