AD5664BCPZ-REEL7
We Just offer NEW & ORIGINAL items , should any of these items be
of interest to you, please let us know. we are pleased to quote you
our best price . Thank you !
FEATURES
Low power, quad nanoDACs AD5664: 16 bits AD5624: 12 bits Relative
accuracy: ±12 LSBs max Guaranteed monotonic by design 10-lead MSOP
and 3 mm × 3 mm LFCSP_WD 2.7 V to 5.5 V power supply Power-on reset
to zero Per channel power-down Serial interface, up to 50 MHz
APPLICATIONS
Process control Data acquisition systems Portable battery-powered
instruments Digital gain and offset adjustment Programmable voltage
and current sources Programmable attenuators
GENERAL DESCRIPTION
The AD5624/AD5664, members of the nanoDAC® family, are low power,
quad, 12-, 16-bit buffered voltage-out DACs that operate from a
single 2.7 V to 5.5 V supply and are guaranteed monotonic by
design. The AD5624/AD5664 require an external reference voltage to
set the output range of the DAC. The device incorporates a power-on
reset circuit that ensures the DAC output powers up to 0 V and
remains there until a valid write takes place. The devices contain
a power-down feature that reduces the current consumption of the
device to 480 nA at 5 V and provides software-selectable output
loads while in power-down mode. The low power consumption of these
devices in normal operation makes them ideally suited to portable
batteryoperated equipment. The power consumption is 2.25 mW at 5 V,
going down to 2.4 μW in power-down mode. The AD5624/AD5664 on-chip
precision output amplifier allows rail-to-rail output swing to be
achieved. The AD5624/AD5664 use a versatile 3-wire serial interface
that operates at clock rates up to 50 MHz, and are compatible with
standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
Product parameters
| Category | Integrated Circuit (IC) |
| Manufacturer | Analog Devices Inc. |
| Series | NanoDAC ® |
| package | Reel (TR) |
| Product status | For Sale |
| Digit | 16 |
| Number of digital to analog converters | 4 |
| Establishment time | 7µs |
| type of output | Voltage - Buffered |
| Differential Output | not have |
| data interface | SPI,DSP |
| Reference Type | external |
| Voltage supply, analog | 2.7V ~ 5.5V |
| Voltage supply, digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ± 6, ± 1 (maximum) |
| architecture | Resistance string DAC |
| operation temperature | -40°C ~ 105°C |
| Packaging/Housing | 10-VFDFN bare solder pad, CSP |

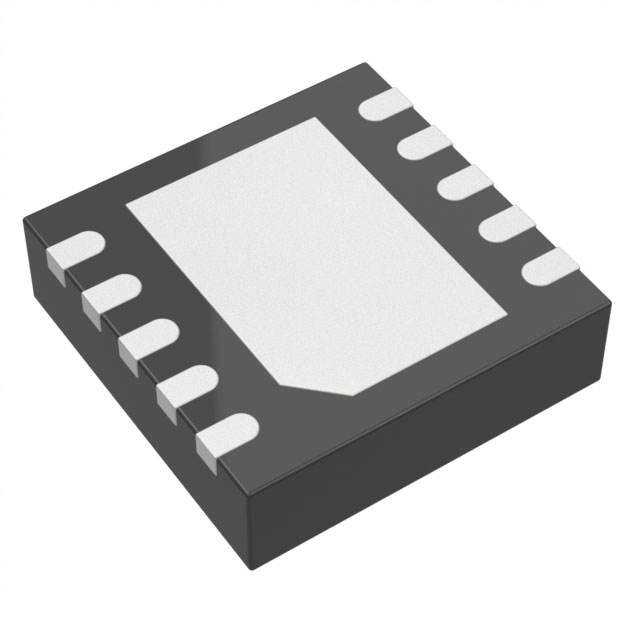

Product image
Our Advantages:
We have a team with rich experience in sales, research and
development, and management, with operations in over 70 countries
worldwide. The products are widely used in consumer electronics,
computers, new energy, communication, military industry, aviation,
automotive, medical, artificial intelligence and other application
fields.
After more than 20 years of efforts, the company has established
good cooperative relationships with global electronic component
manufacturers and well-known brand agents, with stable supply
channels, 100% quality assurance, highly competitive prices, and
fast delivery
And comprehensive after-sales service. We are your best choice and
best partner!
Advantage products: XILINX, ALTERA, MICROCHIP, STM, ADI, TI, INTEL,
our advantages:
We have a team with rich experience in sales, research and
development, and management, with operations in over 70 countries
worldwide. The products are widely used in consumer electronics,
computers, new energy, communication, military industry, aviation,
automotive, medical, artificial intelligence and other application
fields.
After more than 20 years of efforts, the company has established
good cooperative relationships with global electronic component
manufacturers and well-known brand agents, with stable supply
channels, 100% quality assurance, highly competitive prices, and
fast delivery
And comprehensive after-sales service. We are your best choice and
best partner!
Advantage products: well-known brands such as XILINX, ALTERA,
MICROCHIP, ST, ADI, TI, INFINEON, ,etc.
FAQ
Q1: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your
specific order!
Q2: How about your delivery time?
A:Generally, goods would be shipped in 3-5 work days after payment
received, finally depends on order quantities.
Q3: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange
samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.
Q4):What is your products quality?Do you test all your goods before
delivery?
A:Yes,We have 100% test before delivery,We can make sure all the
items from our company is 100% new & original .
Q5:Can l get a discount if l make a larger order?
A:Yes, the more pieces you purchase, the higher the discount. If
your purchasing order amount reaches or exceeds $1,000, we would be
happy to provide you with a big order quoted price.
Any other more questions, please feel free to contact us. We are
always at your service !
