AD5420AREZ-REEL7
Products Description:
The AD5410/AD5420 are low cost, precision, fully integrated
12-/16-bit converters offering a programmable current source output
designed to meet the requirements of industrial process control
applications. The output current range is programmable at 4 mA to
20 mA, 0 mA to 20 mA, or an overrange function of 0 mA to 24 mA.
The output is open-circuit protected. The device operates with a
power supply (AVDD) range from 10.8 V to 60 V. Output loop
compliance is 0 V to AVDD − 2.5 V. The flexible serial interface is
SPI, MICROWIRE™, QSPI™, and DSP compatible and can be operated in
3-wire mode to minimize the digital isolation required in isolated
applications. The device also includes a power-on reset function,
ensuring that the device powers up in a known state, and an
asynchronous CLEAR pin that sets the output to the low end of the
selected current range. The total unadjusted error is typically
±0.01% FSR
Technological Parameters:
| category | Integrated Circuit (IC) |
| manufacturer | Analog Devices Inc. |
| package | Reel (TR) |
| Product status | For Sale |
| digit | 16 |
| Number of digital to analog converters | 1 |
| Establishment time | 40µs |
| type of output | Current - Buffered |
| Differential Output | not have |
| data interface | SPI,DSP |
| Reference Type | External, Internal |
| Voltage supply, analog | 10.8V ~ 40V |
| Voltage supply, digital | |
Customer Service:
1. Do you support BOM lists?
Of course, we have a professional team to provide BOM.
2. Shown below. Behind MOQ?
Our MOQ is flexible and can be provided according to your needs,
with a minimum of 10 pieces.
3. What about lead time?
After receiving the deposit, we will arrange to pack the goods and
contact logistics for delivery. The duration is 3-7 days.
4. Our advantage?
1. Stable and sufficient supply
2. Competitive pricing
3. Rich BOM experience
4. Perfect after-sales service
5. Professional test certificate
5. Our service?
Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card,
paypal, Western Union, Cash, Escrow, Alipay...
6. Transportation:
DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping

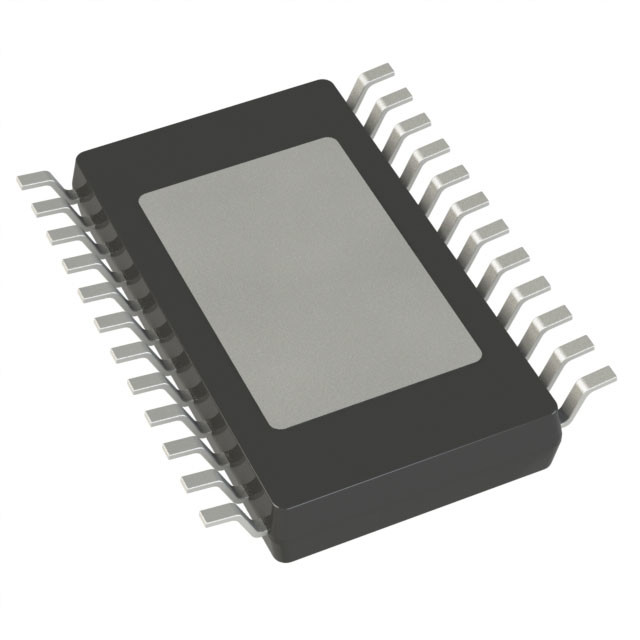

Product Photos:
