    ADUC7022BCPZ62

    ADUC7022BCPZ62


    Products Description:

    Analog I/O Multichannel, 12-bit, 1 MSPS ADC Up to 16 ADC channels1 Fully differential and single-ended modes 0 V to VREF analog input range 12-bit voltage output DACs Up to 4 DAC outputs available1 On-chip voltage reference On-chip temperature sensor (±3°C) Voltage comparator Microcontroller ARM7TDMI core, 16-bit/32-bit RISC architecture JTAG port supports code download and debug Clocking options Trimmed on-chip oscillator (±3%) External watch crystal External clock source up to 44 MHz 41.78 MHz PLL with programmable divider Memory 62 kB Flash/EE memory, 8 kB SRAM In-circuit download, JTAG-based debug Software-triggered in-circuit reprogrammability On-chip peripherals UART, 2× I2C and SPI serial I/O Up to 40-pin GPIO port1 4× general-purpose timers Wake-up and watchdog timers (WDT) Power supply monitor 3-phase, 16-bit PWM generator1 Programmable logic array (PLA) External memory interface, up to 512 kB1 Power Specified for 3 V operation Active mode: 11 mA at 5 MHz, 40 mA at 41.78 MHz Packages and temperature range From 40-lead 6 mm × 6 mm LFCSP to 80-lead LQFP1 Fully specified for –40°C to +125°C operation Tools Low cost QuickStart development system Full third-party support.


    Technological Parameters:


    Product attributesAttribute value
    Manufacturer:Analog Devices Inc.
    Product type:ARM microcontroller - MCU
    Series: ADUC7022
    Installation style:SMD/SMT
    Packaging/Box:LFCSP-40
    Core: ARM7TDMI
    Program memory size:62 kB
    Data bus width:32 bit/16 bit
    ADC resolution:12 bit
    Maximum clock frequency:41.78 MHz
    Number of input/output terminals:13 I/O
    Data RAM size:8 kB
    Power supply voltage - minimum:2.7 V
    Power supply voltage - maximum:3.6 V
    Minimum operating temperature:- 40 C
    Maximum operating temperature:+ 125 C
    Packaging:Tray
    Analog power supply voltage:2.7 V to 3.6 V
    Trademark:Analog Devices
    DAC resolution:No DAC
    Data Ram Type:RAM
    Height:0.83 mm
    I/O voltage:2.7 V to 3.6 V
    Interface type:JTAG
    Length:6 mm
    Humidity sensitivity:Yes
    Number of ADC channels:10 Channel
    Number of timers/counters:2 Timer
    Processor family:ADuC7022
    Product:MCU
    Product Type:ARM Microcontrollers - MCU
    Program memory type:Flash
    Factory packaging quantity:490
    Subcategory:Microcontrollers - MCU
    Watchdog timer:Watchdog Timer
    Width:6 mm
    Unit weight:1 g

    Customer Service:

    1. Do you support BOM lists?

    Of course, we have a professional team to provide BOM.

    2. Shown below. Behind MOQ?

    Our MOQ is flexible and can be provided according to your needs, with a minimum of 10 pieces.

    3. What about lead time?

    After receiving the deposit, we will arrange to pack the goods and contact logistics for delivery. The duration is 3-7 days.

    4. Our advantage?

    1. Stable and sufficient supply

    2. Competitive pricing

    3. Rich BOM experience

    4. Perfect after-sales service

    5. Professional test certificate

    5. Our service?

    Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card, paypal, Western Union, Cash, Escrow, Alipay...

    6. Transportation:

    DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping


    Product Photos:

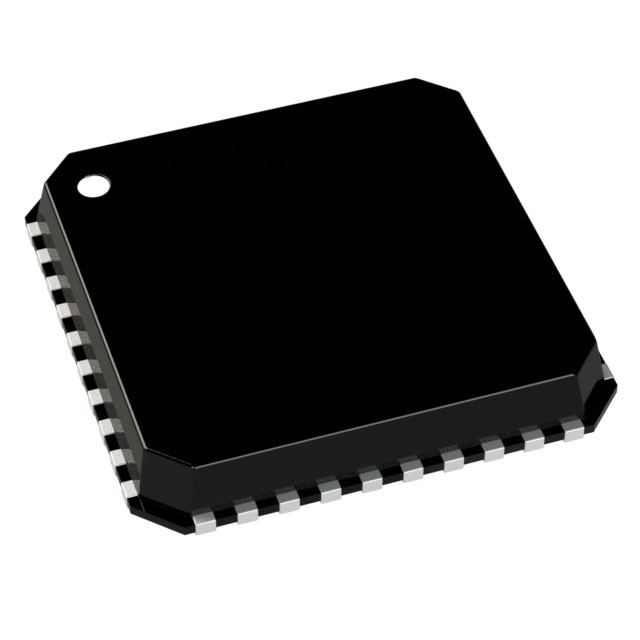

    ADUC7022BCPZ62
