MT29F128G08AJAAAWP-ITZ:A
Products Description:
• Open NAND Flash Interface (ONFI) 2.2-compliant1 • Single-level
cell (SLC) technology • Organization – Page size x8: 8640 bytes
(8192 + 448 bytes) – Block size: 128 pages (1024K + 56K bytes) –
Plane size: 2 planes x 2048 blocks per plane – Device size: 32Gb:
4096 blocks; 64Gb: 8192 blocks; 128Gb: 16,384 blocks; 256Gb: 32,768
blocks • Synchronous I/O performance – Up to synchronous timing
mode 5 – Clock rate: 10ns (DDR) – Read/write throughput per pin:
200 MT/s • Asynchronous I/O performance – Up to asynchronous timing
mode 5 – tRC/tWC: 20ns (MIN) – Read/write throughput per pin: 50
MT/s • Array performance – Read page: 35µs (MAX) – Program page:
350µs (TYP) – Erase block: 1.5ms (TYP) • Operating Voltage Range –
VCC: 2.7–3.6V – VCCQ: 1.7–1.95V, 2.7–3.6V • Command set: ONFI NAND
Flash Protocol • Advanced Command Set – Program cache – Read cache
sequential – Read cache random – One-time programmable (OTP) mode –
Multi-plane commands – Multi-LUN operations – Read unique ID –
Copyback • First block (block address 00h) is valid when shipped
from factory. For minimum required ECC, see Error Management (page
114). • RESET (FFh) required as first command after power-on •
Operation status byte provides software method for detecting –
Operation completion – Pass/fail condition – Write-protect status •
Data strobe (DQS) signals provide a hardware method for
synchronizing data DQ in the synchronous interface • Copyback
operations supported within the plane from which data is read •
Quality and reliability – Data retention: JESD47G compliant; see
qualification report – Endurance: 60,000 PROGRAM/ERASE cycles •
Operating temperature: – Commercial: 0°C to +70°C – Industrial
(IT): –40ºC to +85ºC • Package – 52-pad LGA – 48-pin TSOP –
100-ball BGA – 132-ball BGA
Technological Parameters:
| Product attributes | Attribute value |
| Manufacturer: | Micron Technology |
| Product type: | NAND flash memory |
| Installation style: | SMD/SMT |
| Packaging/Box: | TSOP-48 |
| Series: |
MT29F |
| Storage capacity: | 128 Gbit |
| Interface type: | Parallel |
| Organization: | 16 G x 8 |
| Timing type: | Asynchronous |
| Data bus width: | 8 bit |
| Power supply voltage - minimum: | 2.7 V |
| Power supply voltage - maximum: | 3.6 V |
| Power supply current - maximum value: | 50 mA |
| Minimum operating temperature: | - 40 C |
| Maximum operating temperature: | + 85 C |
| Packaging: | Tray |
| Trademark: | Micron |
| Humidity sensitivity: | Yes |
| Product: | NAND Flash |
| Product Type: | NAND Flash |
| Factory packaging quantity: | 960 |
| Subcategory: | Memory & Data Storage |
| Unit weight: | 9.117 g |
Customer Service:
1. Do you support BOM lists?
Of course, we have a professional team to provide BOM.
2. Shown below. Behind MOQ?
Our MOQ is flexible and can be provided according to your needs,
with a minimum of 10 pieces.
3. What about lead time?
After receiving the deposit, we will arrange to pack the goods and
contact logistics for delivery. The duration is 3-7 days.
4. Our advantage?
1. Stable and sufficient supply
2. Competitive pricing
3. Rich BOM experience
4. Perfect after-sales service
5. Professional test certificate
5. Our service?
Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card,
paypal, Western Union, Cash, Escrow, Alipay...
6. Transportation:
DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping

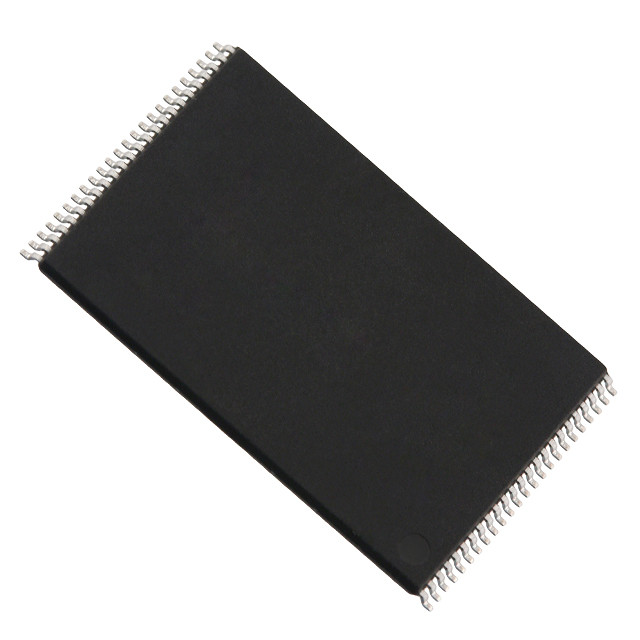

Product Photos:
